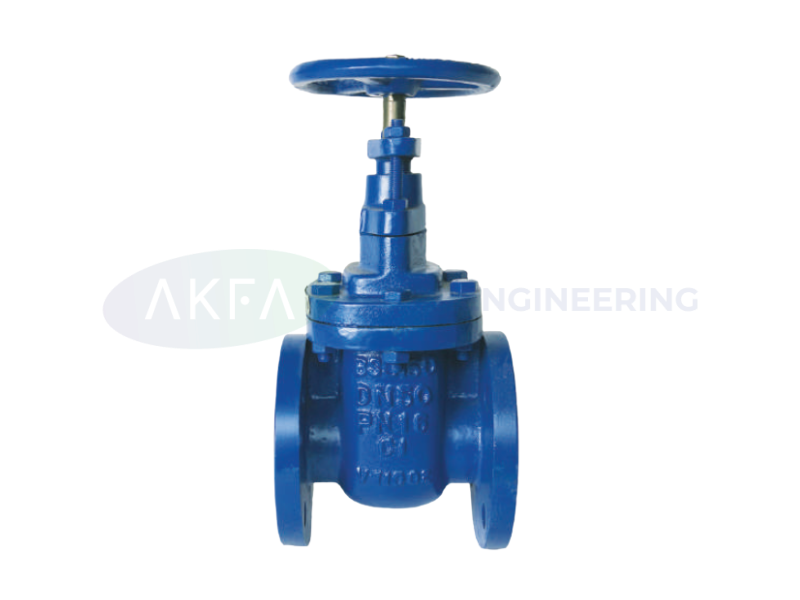

Gate Valve

Gate Valve

Product Description

Valve is suitable for use on water pipelines as opening and closing. Working Temperature not exceeding 100°C. Working pressure PN 10.

STANDARDS

  1. Face to face is according to BS3464
  2. Flange drilled is according to BS 10 Table E or D
Gate Valve
MATERIALS
PARTS MATERIALS GRADE OF DESIGNATION
Body Cast Iron HT 20 - 40
Bonnet Cast Iron HT 20 - 40
Stem Stainless Steel ZHPB 59 - 1
Disc Cast Iron HT 20 - 40
Bonnet Gasket Compressed Asbestos XB 200
Gland Packing Lubricated Asbestos YS 250F
Seat Ring Cast Iron HPB 59-1 35
Valve is suitable for use on water pipelines as opening and closing. Working Temperature not exceeding 100°C. Working pressure PN 10.

STANDARDS

  1. Face to face is according to BS3464
  2. Flange drilled is according to BS 10 Table E or D
Gate Valve
MATERIALS
PARTS MATERIALS GRADE OF DESIGNATION
Body Cast Iron HT 20 - 40
Bonnet Cast Iron HT 20 - 40
Stem Stainless Steel ZHPB 59 - 1
Disc Cast Iron HT 20 - 40
Bonnet Gasket Compressed Asbestos XB 200
Gland Packing Lubricated Asbestos YS 250F
Seat Ring Cast Iron HPB 59-1 35
