Product Description
|
Description
|
High Performance Butterfly Valves are a standard in many industries including heating, ventilating and air conditioning, power generation, hydrocarbon processing, water and waste water treatment, and marine and commercial shipbuilding.
Our products are also installed in applications as diverse as food and beverage processing, snowmaking and pulp and paper production. Configurations are available for harsh conditions as well as applications requiring nominal pressure and temperature ratings.
|
|
|

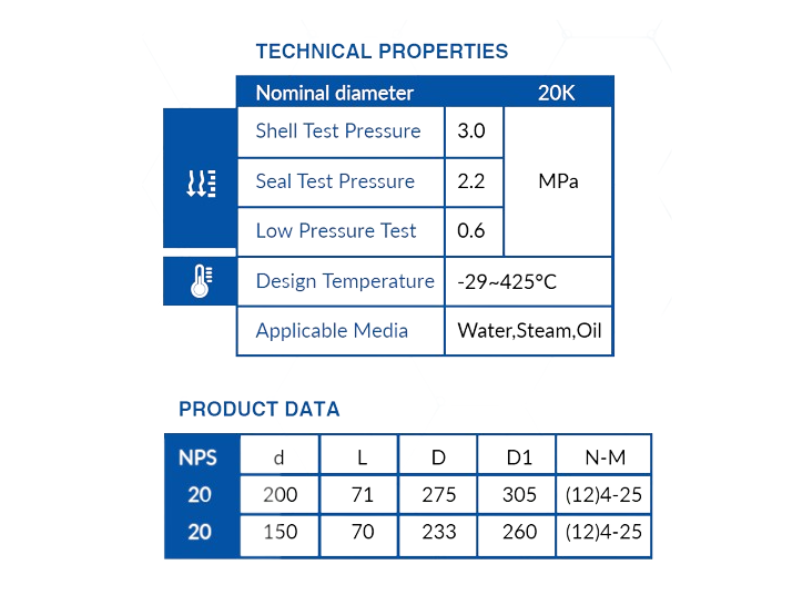

TECHNICAL REQUIREMENTS
|
- Design & manufacture standards: API 609
- Structure length standards: GB/T12221
- Flange size standards: JIS B 2220
- Inspection and Testing Standards : API 598
- Pressure - Temperature acc to ASME B16. 34.
|
|
|
|
|
|
|

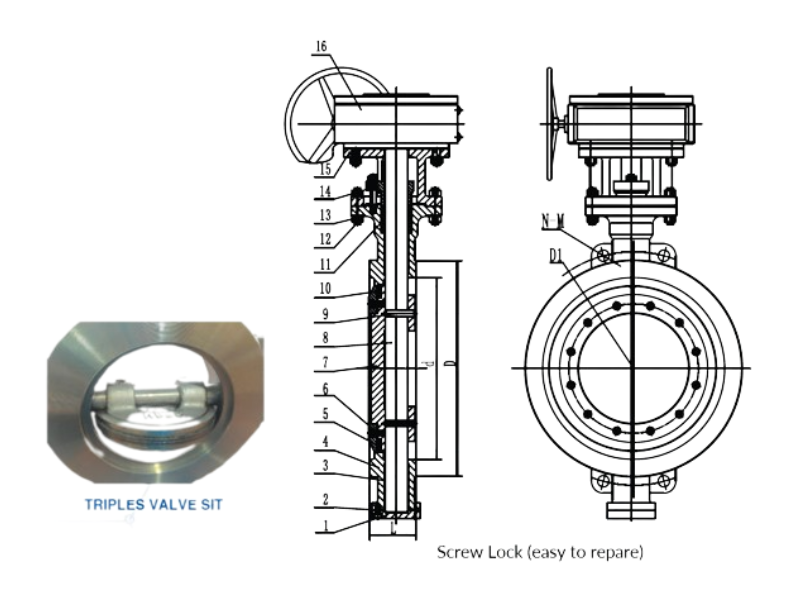

| NO.
|
PART NAME
|
MATERIAL
|
| 1
|
Cover under
|
SS304
|
| 2
|
Bolt
|
ASTM A193 B8
|
| 3
|
Self-lubric bearing
|
Graphite + 304
|
| 4
|
Body
|
CF8
|
| 5
|
Seal Ring
|
SS316 + Graphite
|
| 6
|
Bolt
|
ASTM A193 B8
|
| 7
|
Disc
|
CF8M
|
| 8
|
Stem
|
SS316
|
| 9
|
Pin
|
SS316
|
| 10
|
Seal Ring Retainer
|
F316
|
| 11
|
Packing
|
Graphite
|
| 12
|
Bolt
|
ASTM A193 B7
|
| 13
|
Stud
|
ASTM A194 2H
|
| 14
|
Gland flange
|
ASTM A351 CF8
|
| 15
|
Bracket
|
ASTM A216 WCB
|
| 16
|
Worm wheel
|
Completed Set
|
|
|
|
|
|
|
Description
|
High Performance Butterfly Valves are a standard in many industries including heating, ventilating and air conditioning, power generation, hydrocarbon processing, water and waste water treatment, and marine and commercial shipbuilding.
Our products are also installed in applications as diverse as food and beverage processing, snowmaking and pulp and paper production. Configurations are available for harsh conditions as well as applications requiring nominal pressure and temperature ratings.
|
|
|
TECHNICAL REQUIREMENTS
|
- Design & manufacture standards: API 609
- Structure length standards: GB/T12221
- Flange size standards: JIS B 2220
- Inspection and Testing Standards : API 598
- Pressure - Temperature acc to ASME B16. 34.
|
|
|
|
|
|
|
| NO.
|
PART NAME
|
MATERIAL
|
| 1
|
Cover under
|
SS304
|
| 2
|
Bolt
|
ASTM A193 B8
|
| 3
|
Self-lubric bearing
|
Graphite + 304
|
| 4
|
Body
|
CF8
|
| 5
|
Seal Ring
|
SS316 + Graphite
|
| 6
|
Bolt
|
ASTM A193 B8
|
| 7
|
Disc
|
CF8M
|
| 8
|
Stem
|
SS316
|
| 9
|
Pin
|
SS316
|
| 10
|
Seal Ring Retainer
|
F316
|
| 11
|
Packing
|
Graphite
|
| 12
|
Bolt
|
ASTM A193 B7
|
| 13
|
Stud
|
ASTM A194 2H
|
| 14
|
Gland flange
|
ASTM A351 CF8
|
| 15
|
Bracket
|
ASTM A216 WCB
|
| 16
|
Worm wheel
|
Completed Set
|
|
|
|
|
|
