HRC & HTC Coupling

HRC & HTC Coupling

Product Description

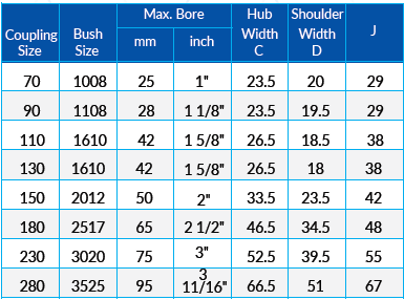

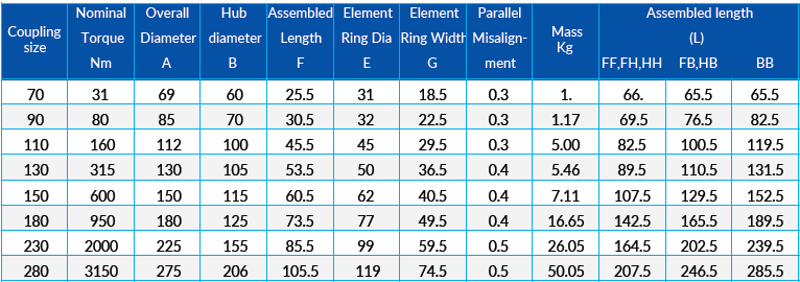

Coupling - HRC Table 1- Dimensionm (mm)
Coupling - HRC
Angular misalignment capacity up to 1 deg.
Mass is for an FF FH or HH coupling with mid range Taper Lock Bushes.
F refers to combinations of flanges: FF FH HH FB HB BB.
J is the wrench clearance required for tightening ang loosening the bush on the shaft. The use of a shortenedkey will allow this dimension to be reduced.
Coupling - HRC
F Flange (Taper Bored)
F Flange (Taper Bored)
H Flange (Taper Bored)
H Flange (Taper Bored)
HRC Assembly
HRC Assembly
B Flange (Pilot bored)
B Flange (Pilot bored)
HTC Type F & H HTC Type B
Coupling - HRC Coupling - HRC

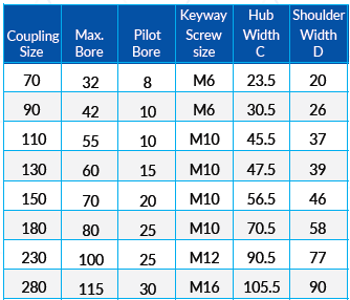

Coupling - HRC Table 1- Dimensionm (mm)
Coupling - HRC
Coupling - HRC
Angular misalignment capacity up to 1 deg.
Mass is for an FF FH or HH coupling with mid range Taper Lock Bushes.
F refers to combinations of flanges: FF FH HH FB HB BB.
J is the wrench clearance required for tightening ang loosening the bush on the shaft. The use of a shortenedkey will allow this dimension to be reduced.
F Flange (Taper Bored)
F Flange (Taper Bored)
H Flange (Taper Bored)
H Flange (Taper Bored)
HRC Assembly
HRC Assembly
B Flange (Pilot bored)
B Flange (Pilot bored)
HTC Type F & H
Coupling - HRC
HTC Type B
Coupling - HRC
