PN40 Globe Valve

PN40 Globe Valve

Product Description

PN40 Globe Valve

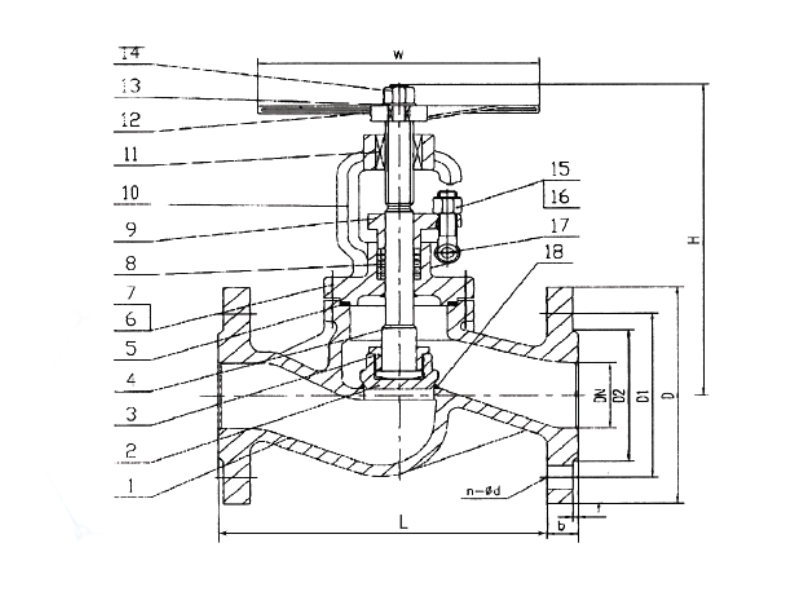

NO PART NAME MATERIAL
1 BODY GS - C25
2 DICS 2Cr13
3 LOCKNOUT 45#
4 STEM 2Cr13
5 COMPONENT GASKET Flex Graphite + 304
6 DOUBLE-HEAD BOLT 34 CrMo1
7 NUT 1C45
8 PACKING Flex ible Graphite
9 GLAND GS - C25
10 BONNET ZQAL 9 -4
11 NUT 1C45
12 HANDWHEEL Ductile Iron
13 GASKET 1C45
14 NUT 34 CrMo1
15 JACK NUT 1C25
16 JACK BOLT 304
17 HINGE PIN 1C25
18 SEALING FACE 304
PN40 Globe Valve
NO PART NAME MATERIAL
1 BODY GS - C25
2 DICS 2Cr13
3 LOCKNOUT 45#
4 STEM 2Cr13
5 COMPONENT GASKET Flex Graphite + 304
6 DOUBLE-HEAD BOLT 34 CrMo1
7 NUT 1C45
8 PACKING Flex ible Graphite
9 GLAND GS - C25
10 BONNET ZQAL 9 -4
11 NUT 1C45
12 HANDWHEEL Ductile Iron
13 GASKET 1C45
14 NUT 34 CrMo1
15 JACK NUT 1C25
16 JACK BOLT 304
17 HINGE PIN 1C25
18 SEALING FACE 304
