PN16 Globe Valve

PN16 Globe Valve

Product Description

  1. DESIGN & MANUFACTURE to DIN3356
  2. FACE TO FACE to DIN3202 F1
  3. FLLANGE to BS EN 1092-2:1997
  4. TEST to ISO 5208

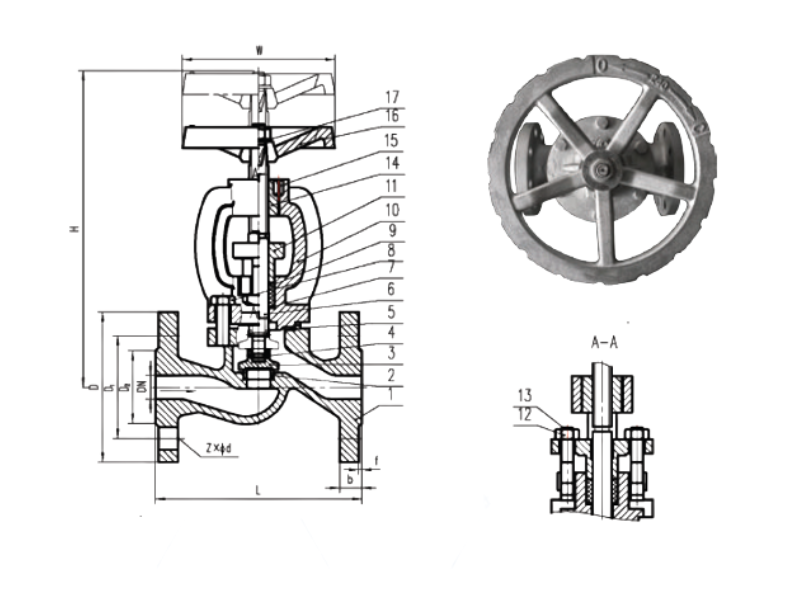

PN16 Globe Valve
1 BODY 1 CAST IRON GJL- 250STEEL
2 SEAT RING 1 STAINLESS STEEL 2CR13
3 DISC+DISC RING 1 DN80-DN2008 STEELA105+SS2CR13
4 RING - STAINLESS STEEL 2CR13
5 GASKET 1 STEEL#08+GRAPHITE
6 STEM 1 STAINLESS STEEL 2CR13
7 WASHER 1 STEEL
8 BOLT 4 STEEL
9 PACKING 1 GRAPHITE
10 BONNET 1 CAST IRON GJL-250
11 NUT 1 CAST IRON GJL-250
12 GLAND 2 STEEL
13 TBOLT 3 STEEL
14 STEN NUT 1 BRONZE
15 PIN 1 STEEL
16 HANDWHEEL 1 DUCTILE IRON
17 WASHER 1 STEEL
  1. DESIGN & MANUFACTURE to DIN3356
  2. FACE TO FACE to DIN3202 F1
  3. FLLANGE to BS EN 1092-2:1997
  4. TEST to ISO 5208
