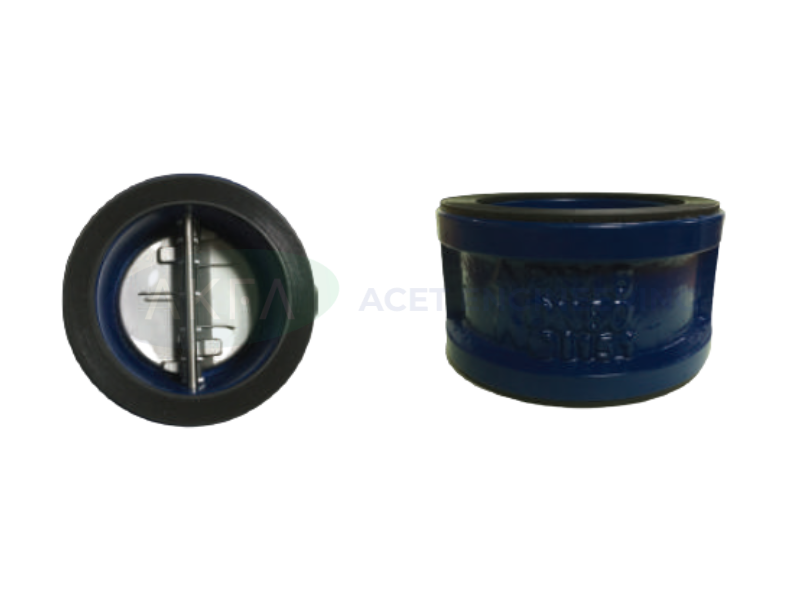

Wafer Check Valve - Double Door

Wafer Check Valve - Double Door

Product Description

  • Small in size, light in weight, compact in surface, easy in maintenance. The quick-close action prevents the medium from flowing back and eliminate water hammer effect.
  • The valve is short in length, so that it is rigid and easy to mount.
  • The valve is tightly sealed, with no leakage under the pressure water test. Safe and reliable in operation.
  • Connection flanges can be made of either cast iron or flat-wided steel. The connection dimensions of flanges accord with the standards of GB2555-18.
  • This product has such characteristic as excellent retaining performance, high safety and reliability and low flow resistance, applicable for systems in the industries of petrochemical, food processing, medicine, textile, paper making, water supply and drainage, metallurgy, energy and light industry.
Wafer Check Valve - Double Door

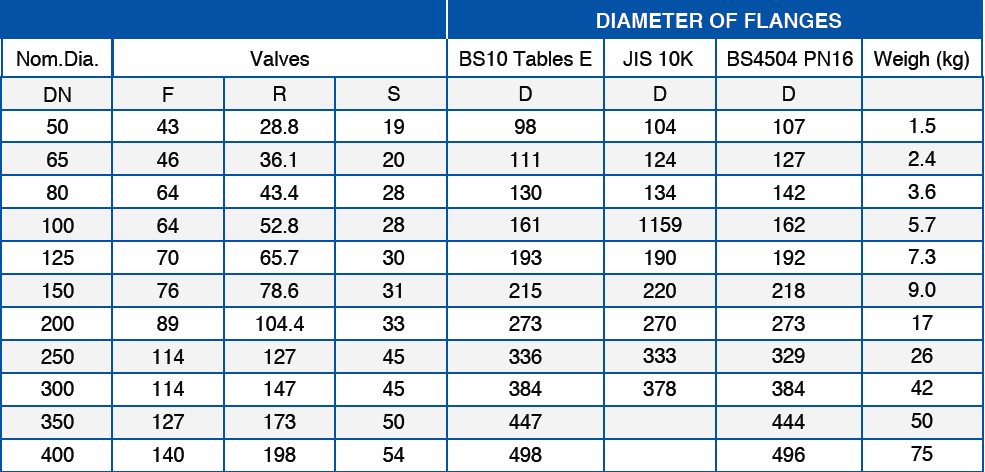

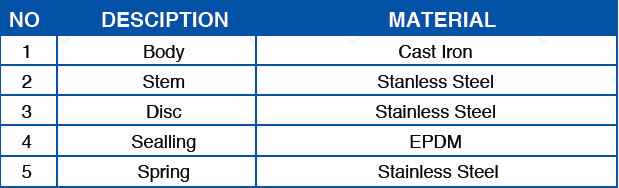

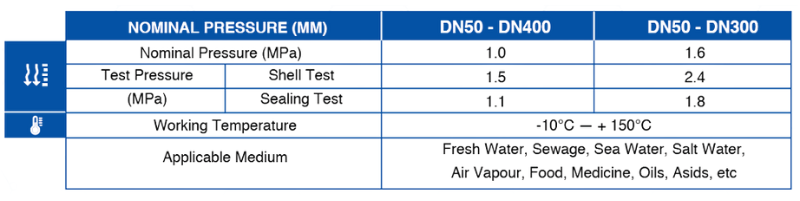

TECHNICAL DATA

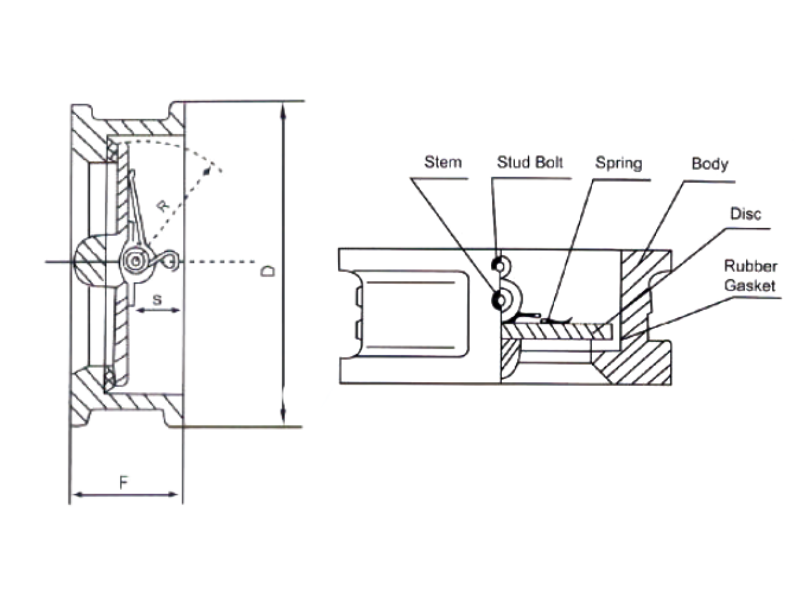

DIMENSIONS

  • Small in size, light in weight, compact in surface, easy in maintenance. The quick-close action prevents the medium from flowing back and eliminate water hammer effect.
  • The valve is short in length, so that it is rigid and easy to mount.
  • The valve is tightly sealed, with no leakage under the pressure water test. Safe and reliable in operation.
  • Connection flanges can be made of either cast iron or flat-wided steel. The connection dimensions of flanges accord with the standards of GB2555-18.
  • This product has such characteristic as excellent retaining performance, high safety and reliability and low flow resistance, applicable for systems in the industries of petrochemical, food processing, medicine, textile, paper making, water supply and drainage, metallurgy, energy and light industry.
Wafer Check Valve - Double Door


TECHNICAL DATA

DIMENSIONS
