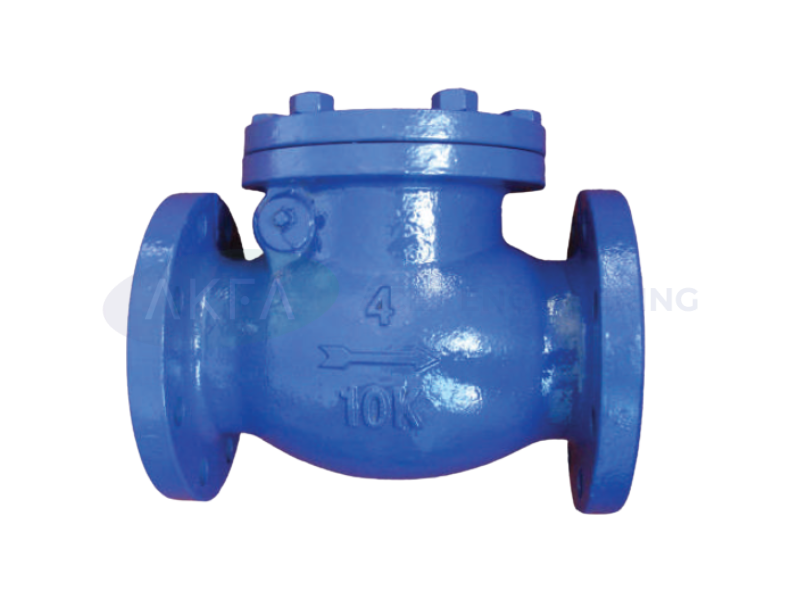

Swing Check Valve

Swing Check Valve

Product Description

A hinged disc assembly is suspended from the body to allow it to move freely. This configuration minimizes pressure loss and eases fluid flow. Swing check valves can be used for either horizontal or vertical (fluid flowing upward) pipe layouts.

DESCRIPTION

Swing check valves are designed to prevent backflow in irrigation and water control lines. The swing arm design guarantees unrestricted full flow and the precisely machined seat creates accurate closure. The valves can be installed in discharge of water, wastewater, sludge, raw sewage pumps and fire system, in horizontal of vertical intallations.
Swing Check Valve

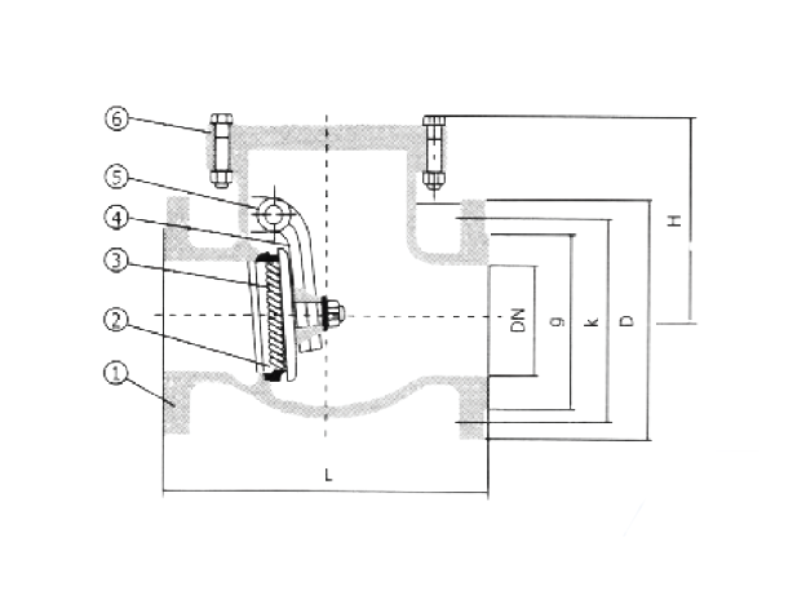

NO PART MATERIAL
1 Body Cast Iron / Stainless Steel
2 Seat Cast Iron / Stainless Steel
3 Disc Cast Iron / Stainless Steel
4 Hanger Cast Iron / Stainless Steel
5 Stem Cast Iron / Stainless Steel
6 Bonnet Cast Iron / Stainless Steel
A hinged disc assembly is suspended from the body to allow it to move freely. This configuration minimizes pressure loss and eases fluid flow. Swing check valves can be used for either horizontal or vertical (fluid flowing upward) pipe layouts.

DESCRIPTION

Swing check valves are designed to prevent backflow in irrigation and water control lines. The swing arm design guarantees unrestricted full flow and the precisely machined seat creates accurate closure. The valves can be installed in discharge of water, wastewater, sludge, raw sewage pumps and fire system, in horizontal of vertical intallations.
Swing Check Valve

NO PART MATERIAL
1 Body Cast Iron / Stainless Steel
2 Seat Cast Iron / Stainless Steel
3 Disc Cast Iron / Stainless Steel
4 Hanger Cast Iron / Stainless Steel
5 Stem Cast Iron / Stainless Steel
6 Bonnet Cast Iron / Stainless Steel
