Transmission
>
MH Coupling
MH Coupling
Please enter valid quantity.
Whatsapp
Email
Product Description
Construction
High quality cast iron flanges
Material of Rubber is : Nitrile Butadiene Rubber NBR (Steel cores are inserted in the teeth of the rubber)

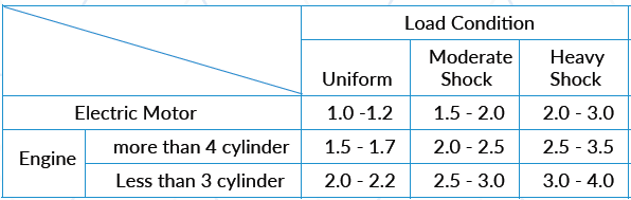

Table (1), Service Factor (SF)

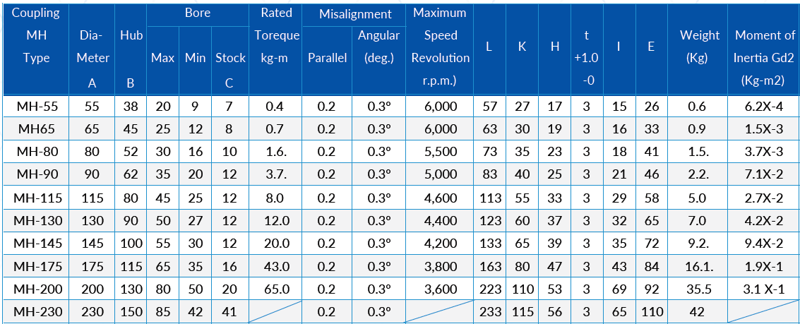

Table 2, Dimensions (mm) & Coupling Ratings
In case the coupling is used near its allowable maximum speed,check the dynamic balance.
In case the coupling is used large torque variation machines, the maximum bore must be smaller about 5mm than those in Table 2.
Construction
High quality cast iron flanges
Material of Rubber is : Nitrile Butadiene Rubber NBR (Steel cores are inserted in the teeth of the rubber)
Table (1), Service Factor (SF)
Table 2, Dimensions (mm) & Coupling Ratings
In case the coupling is used near its allowable maximum speed,check the dynamic balance.
In case the coupling is used large torque variation machines, the maximum bore must be smaller about 5mm than those in Table 2.
