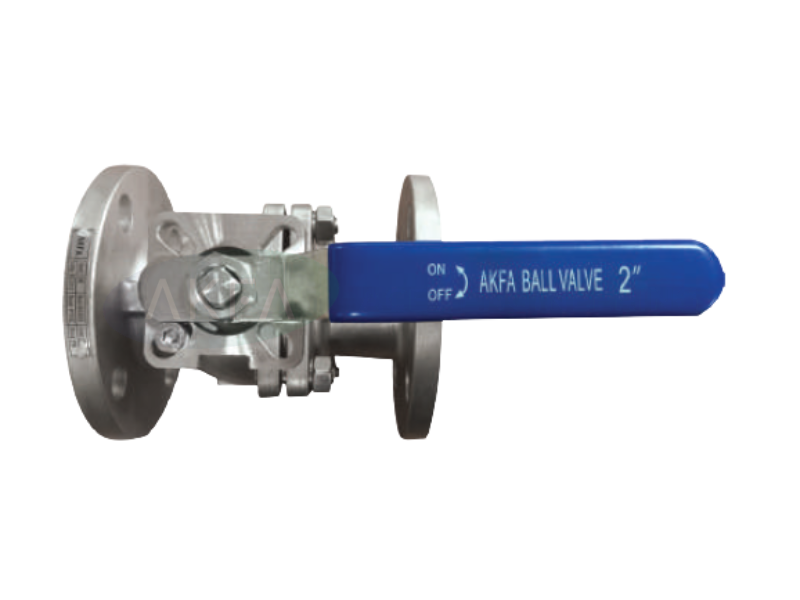

Stainless Steel Two Piece Ball Valve Mounting Pad
Please enter valid quantity.
Product Description
|
FEATURES:
|
| This multi-purpose manual lever ball valve has excellent corrosion resistance and is fit for many applications 1000 WOG:- Max 1000 psi for Water, Oil, Gas Body & Ball Type: Stainless Steel Temp Range:-29to 150°C Mounting Pad Also Can Match With Pneumatic Actuator
|
|
|
|
|
|
|

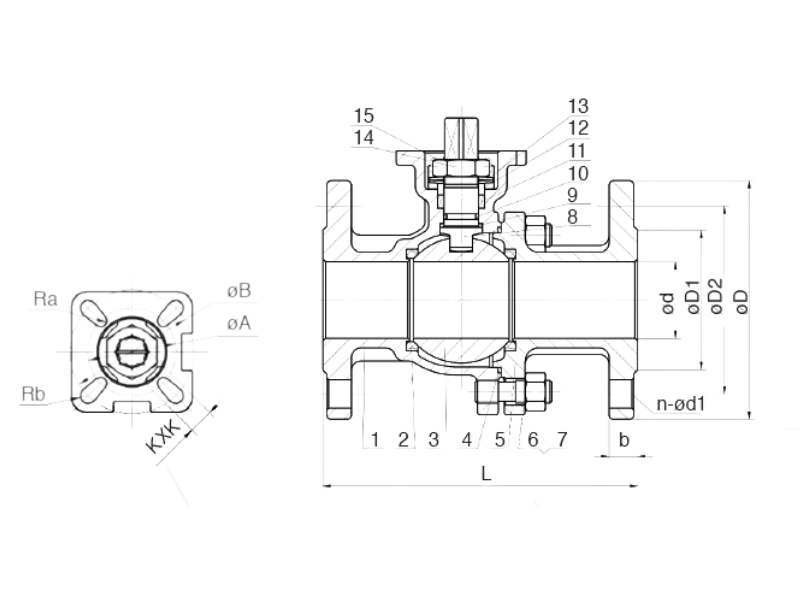

| ITEM
|
PARTS
|
PARTS
|
| 1
|
BODY
|
CF8
|
| 2
|
SEAT
|
PTFF
|
| 3
|
BALL
|
304
|
| 4
|
GASKET
|
PTFE
|
| 5
|
BONNET
|
CF8
|
| 6
|
BOLT
|
304
|
| 7
|
NJT
|
304
|
| 8
|
STEM
|
304
|
| 9
|
STEM WASHER
|
PTFE +25% GLASS FIBER
|
| 10
|
C RING
|
FPM
|
| 11
|
PACKING
|
PTFE
|
| 12
|
GLAND
|
304
|
| 13
|
DISC SPRING
|
304
|
| 14
|
NJT
|
304
|
| 15
|
CROWN WASHER
|
304
|
|
|
|
|
|
|
|
|
|
FEATURES:
|
| This multi-purpose manual lever ball valve has excellent corrosion resistance and is fit for many applications 1000 WOG:- Max 1000 psi for Water, Oil, Gas Body & Ball Type: Stainless Steel Temp Range:-29to 150°C Mounting Pad Also Can Match With Pneumatic Actuator
|
|
|
|
|
| ITEM
|
PARTS
|
PARTS
|
| 1
|
BODY
|
CF8
|
| 2
|
SEAT
|
PTFF
|
| 3
|
BALL
|
304
|
| 4
|
GASKET
|
PTFE
|
| 5
|
BONNET
|
CF8
|
| 6
|
BOLT
|
304
|
| 7
|
NJT
|
304
|
| 8
|
STEM
|
304
|
| 9
|
STEM WASHER
|
PTFE +25% GLASS FIBER
|
| 10
|
C RING
|
FPM
|
| 11
|
PACKING
|
PTFE
|
| 12
|
GLAND
|
304
|
| 13
|
DISC SPRING
|
304
|
| 14
|
NJT
|
304
|
| 15
|
CROWN WASHER
|
304
|
|
|
|
|
|
|
|
|
|
