Product Description

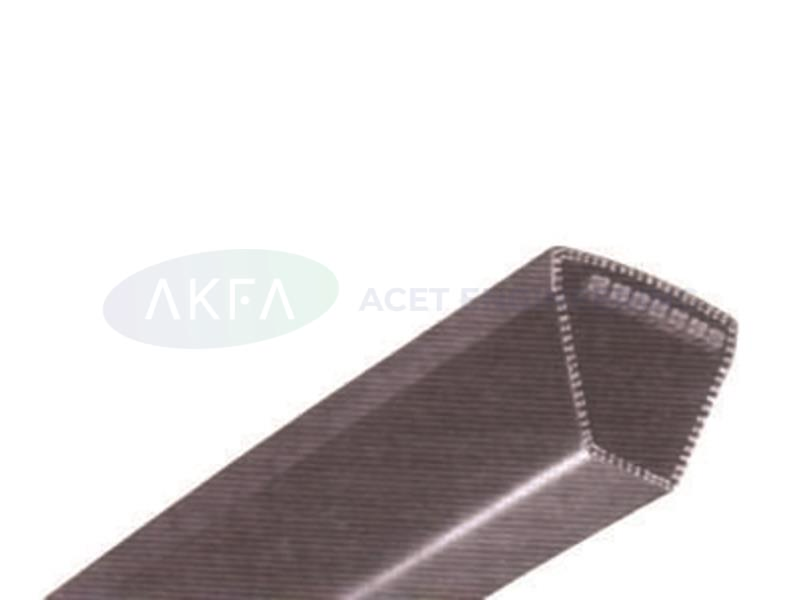

AKFA® Wedge/Narrow V-Belts
Section
Dimensions
Angle
(Deg)
Range
Nominal
length
Top width
mm
Thickness
mm
Min
mm
Max
mm
SPZ
9.7
8
40
381
5300
Lp
SPA
12.7
10
40
600
5300
Lp
SPB
16.3
13
40
1122
10000
Lp
SPC
22
18
40
2000
15500
Lp
3V
9.7
8
40
381
5309
La
5V
16.3
13
40
1118
10008
La
8V
25.5
23
40
2007
15494
La

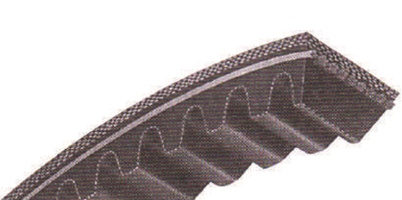

AKFA® Wedge/Narrow Cogged V-Belts
Section
Dimensions
Angle
(Deg)
Range
Nominal
length
Top width
mm
Thickness
mm
Min
mm
Max
mm
XPZ
9.7
8
40
537
2540 & above
Lp
XPA
12.7
10
40
508
2540 & above
Lp
XPB
16.3
13
40
762
2540 & above
Lp
XPC
22
18
40
762
2540 & above
Lp
3VX
9.7
8
40
508
2540 & above
La
5VX
16.3
13
40
762
2540 & above
La

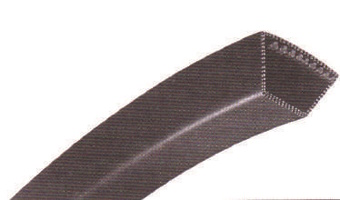

AKFA® Classical V-Belts
Section
Dimensions
Angle
(Deg)
Range
Nominal
length
Top width
mm
Thickness
mm
Min
mm
Max
mm
K
08
5.0
40
305
1549
La
Z
10
5.5
40
330
1905
La
M / 3L
10
6.0
40
330
1905
La
A / 4L
13
8.0
40
356
10008
Lp
B / 5L
17
11.0
40
483
15494
Lp
20
20
12.5
40
1200
10008
Lp
C
22
14.0
40
737
15494
Lp
25
25
16.0
40
1300
9906
Lp
D
32
19.0
40
1600
15494
Lp
E
38
25.0
40
2515
14986
Lp

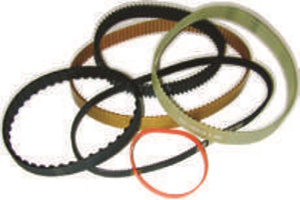

Timing Belt

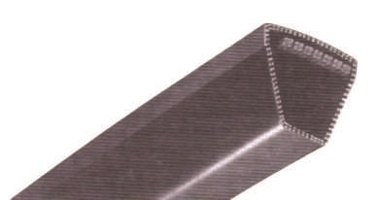

Transmission Belt
Link Belt
Conveyor Belt
Round
*Any Unique Belting didn’t show in catalog but all can be order by quotation.
