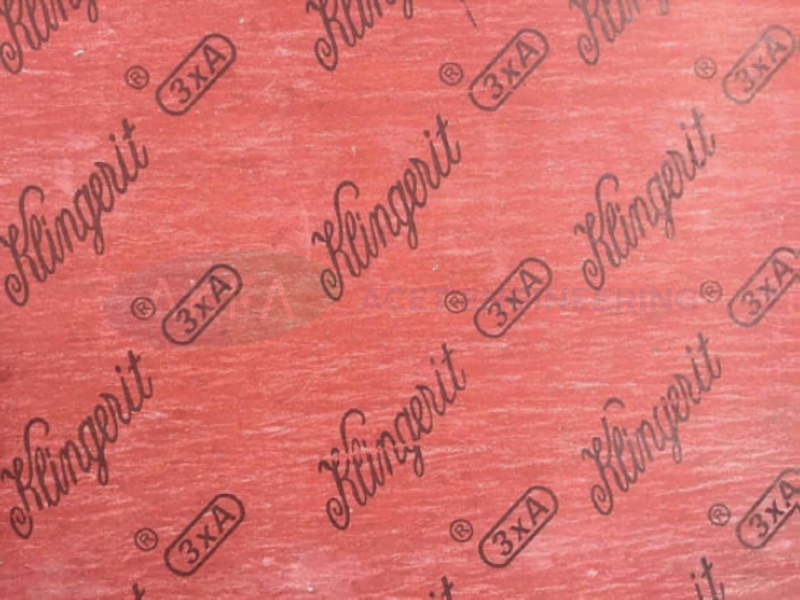

"Klinger 3XA" Red Gasket Jointing Sheets
Please enter valid quantity.
Product Description
 |
| Top quality sheet material for steam, gas, oil water and non-aggressive services. Recommended for use for high temperatures and high pressures. Composed of styrene- butadiene binder with high-grade long-fibre chrysotile asbestos. |
|
Characteristics & Main Applications
|
| Body gaskets for liquids and steams at lower pressures and temperatures and low bolt loads, e.g. transformer gaskets. Thanks to the swelling in oil and fuels, it offers an excellent conformity with the flange at low surface loads |
|
| SIZE |
Weight |
| 1/8" (3mm) 1500mm X 1000mm |
9.5KG. / SHEET : +/- 0.5kg / SHEET |
| 1/16" (1.5mm) 1500mm X 1000mm |
4.8KG. / SHEET : +/- 0.5kg / SHEET |
|
|
|
|
| Color |
|
Red |
| Max. Temperature* |
|
350°C |
| Max. Pressure* |
|
50 Bar |
| Typical Specifications |
Indian Standard |
IS 2712 / 1998 : Gr. W/1 & 0/1 |
| |
British |
BS 1832 Grade A & O |
| |
German |
DIN 375 - 4 IT 400 |
| |
American |
ASTM F104-F112 551 M8 |
| |
French |
NFT48001 Cat. D. |
| Typical Original Minimum tensile Properties (1.5mm) |
Minimum tensile strength (cross grain) |
ASTM F152: 35 N/mm 2 |
| |
Specific gravity |
1.95 gm/cm 3 |
| |
Compressibility |
ASTM F36A: 8% |
| |
Recovery |
ASTM F36A: 55% |
| |
Stress relaxation |
BS 1832: 30 N/mm 2 |
| Typical properties after fluid immersion (1.5mm) - Thickness increase |
ASTM Oil 3 |
5 hours at 150°C: 20% |
| |
ASTM Fuel A |
5 hours at 20°C: 0-10% |
| |
ASTM Fuel B |
5 hours at 23°C: 15% |
|
|
|
|
|
| Top quality sheet material for steam, gas, oil water and non-aggressive services. Recommended for use for high temperatures and high pressures. Composed of styrene- butadiene binder with high-grade long-fibre chrysotile asbestos. |
|
Characteristics & Main Applications
|
| Body gaskets for liquids and steams at lower pressures and temperatures and low bolt loads, e.g. transformer gaskets. Thanks to the swelling in oil and fuels, it offers an excellent conformity with the flange at low surface loads |
|
| SIZE |
Weight |
| 1/8" (3mm) 1500mm X 1000mm |
9.5KG. / SHEET : +/- 0.5kg / SHEET |
| 1/16" (1.5mm) 1500mm X 1000mm |
4.8KG. / SHEET : +/- 0.5kg / SHEET |
|
|
|
|
| Color |
|
Red |
| Max. Temperature* |
|
350°C |
| Max. Pressure* |
|
50 Bar |
| Typical Specifications |
Indian Standard |
IS 2712 / 1998 : Gr. W/1 & 0/1 |
| |
British |
BS 1832 Grade A & O |
| |
German |
DIN 375 - 4 IT 400 |
| |
American |
ASTM F104-F112 551 M8 |
| |
French |
NFT48001 Cat. D. |
| Typical Original Minimum tensile Properties (1.5mm) |
Minimum tensile strength (cross grain) |
ASTM F152: 35 N/mm 2 |
| |
Specific gravity |
1.95 gm/cm 3 |
| |
Compressibility |
ASTM F36A: 8% |
| |
Recovery |
ASTM F36A: 55% |
| |
Stress relaxation |
BS 1832: 30 N/mm 2 |
| Typical properties after fluid immersion (1.5mm) - Thickness increase |
ASTM Oil 3 |
5 hours at 150°C: 20% |
| |
ASTM Fuel A |
5 hours at 20°C: 0-10% |
| |
ASTM Fuel B |
5 hours at 23°C: 15% |
|
|
|
|
|
